Production description:

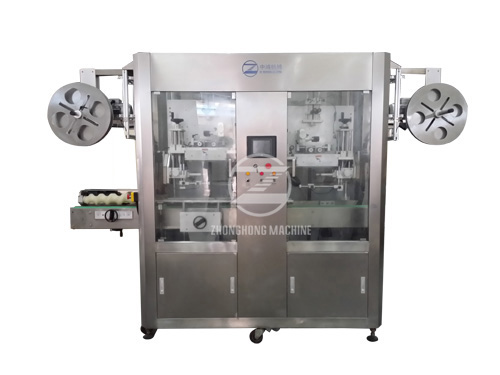

DH-S series is double-headed shrink label. It is mainly suitable for the bottle that needs two labels, such as bottle labeling and bottleneck labeling etc. It can save cost and floor area and increase the production efficiency!
Electrical equipment configuration:
Import high quality PLC, servo motor, servo driver, transducer, human-computer interface operation is automatica;ly adjustable. Applicable labeling type:
This machine can be customized according to the production requirements, suitable for disposable labeling for beverage, pure water, dairy products, chemical products of various bottle type.
| Model | DH-S150 | DH-S250 | DH-S350 |
| Input power | 2.7KW | 3.0KW | 4.5KW |
| Input voltage | ∮ 3, 220VAC | ∮ 3, 220VAC | ∮ 3, 220VAC |
| Production efficiency | 2 x 150 bottle/min | 2 x 250 bottle/min | 2 x 350 bottle/min |
| Dimension of the machine | L3000mm x W1200mm x H2080mm | L3000mm x W1200mm x H2080mm | L3200mm x W1200mm x H2100mm |
| Diameter of the bottle body | φ28mm-φ125mm | φ28mm-φ125mm | φ28mm-φ125mm |
| Label length | 30mm-250mm | 30mm-250mm | 30mm-250mm |
| Thickness of label | 0.03mm-0.13mm | 0.03mm-0.13mm | 0.03mm-0.13mm |
| Internal diameter of paper pipe | 5'-10' freely adjust | 5'-10' freely adjust | 5'-10' freely adjust |
